Corridor Planks

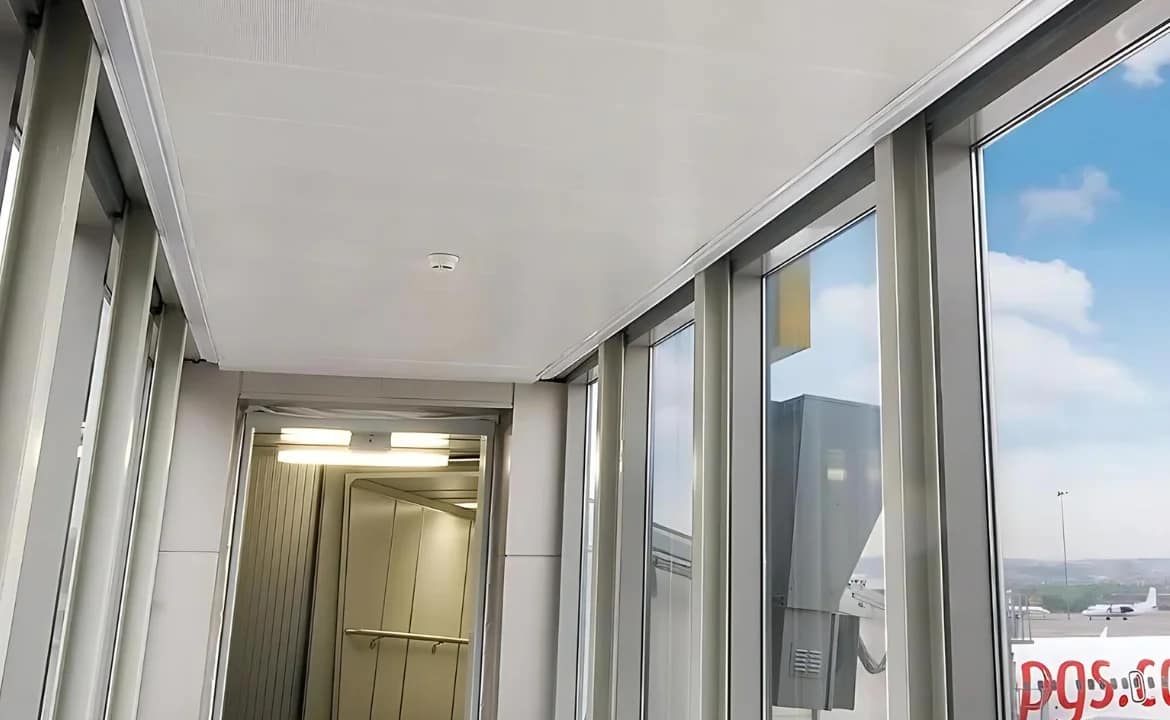

The Corridor planks are designed with a free span of upto 2.4 meters making the ceiling ideal for corridors and narrow rooms. The ceiling is installed without any cross runners or suspension hangers providing a freedom in planning process when placing pipes, ventilation and cables. Its quick to install; 3 times faster than the traditional T-grid ceiling system adding much more aesthetical value to narrow spaces.
Surface
Galvanized steel and aluminum. The thickness of the material depends on the structural requirements. The galvanized steel and aluminum can be power-coated in white matt [similar to RAL 9016] or according to customer specifications. The coating thickness is approx. 60 um. As standard, the planks are designed with a square edge and supports a minimal design achievement over installation.
Dimensions
Plank Size
300 x 1200 mm (W x L)
400 x 1200 mm (W x L)
600 x 1200 mm (W x L)

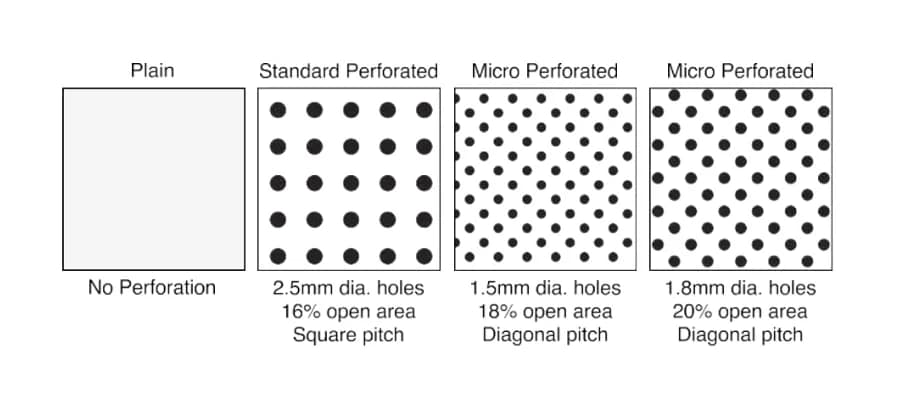

Perforation and Acoustics
Metal panels are available perforated with acoustic fleece or nor perforated. We offer the following perforations.
For other available perforations please contact us.
Suspension System
